High Precision Medical Syringe Infusion Pump Light Weight For Critical Care

Ask Lasest Price
Brand Name :	SINOHERO
Model Number :	SH-509i
Certification :	CE,ISO, IEC60601
Payment Terms :	L/C, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

High Precision Medical Syringe Infusion Pump Light Weight For Critical Care

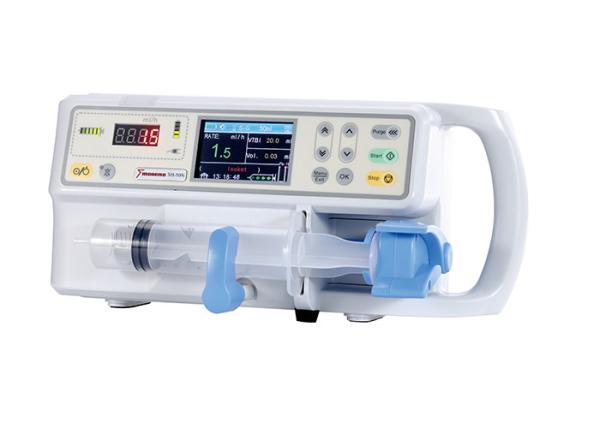

Name:Portable infusion pump SH-509i medical device for critical care and general infusion applications.

NEW Features:

- Compact and Ergonomic design with handle for fast transport.

- LED & LCD dual display

- Users friendly interface for easy operation.

- Various alarm function with volume adjustment lead peace of mind

- Large history data review and last configuration memory to easy review

- Drugs library &Wireless monitoring upgradable

The default injection mode of this pump is flow-rate mode. You can choose other injection modes in the menu. After choosing the mode you want, the corresponding interface shows . Parameters to be set will vary with the mode selected, as shown in the following table:

Injection mode	Parameter to be set	Remark
Flow Rate mode	Rate	The screen shows RATE
Time/Volume mode	Time	The screen shows TIME
Time/Volume mode	Volume	The screen shows TIME
Drug/weight mode	Unit	The screen shows D/W
	Drug Amount
	Solution Volume
	Body Weight
	Dose

	SH-509i
Syringes	5ml,10ml,20ml,30ml,50(60)ml any standard
Flow Rate Range	5ml:0.1ml/h～150ml/h
	10ml:0.1ml/h～300ml/h 20ml:0.1ml/h～600ml/h
	30ml:0.1ml/h～900ml/h 50ml:0.1ml/h～1200ml/h
Flow Rate Step	0.1ml/h
Flow Rate Accuracy	the accuracy of ≥1ml/h injection flow rate can be controlled within ±2%, the accuracy of ＜1 ml/h injection flow rate can be controlled within ±5%
Volume Limit	0.1～9999.9 ml
Purge Rate	5ml:100ml/h; 10ml:200ml/h; 20ml:400ml/h;
Purge Rate	30ml:600ml/h； 50ml:900ml/h
BOLUS Rate	5ml:10ml/h～150ml/h
	10ml:10ml/h～300ml/h; 20ml:10ml/h～600ml/h
	30ml:10ml/h～900ml/h; 50ml:10ml/h～1200ml/h
Syringe Modes	Flow Rate, Time/Volume, Drug/Weight, BOLUS
Time/Volume Mode	Volume: 9999.9ml, time: 24hr 0minute
Drug/weight Mode 8	Body weight:0.1～300 kg, Drug Amount:0.1～999.9 mg Solution Volume:0.1～999.9 ml ,Dose:0.01～99.99(subject to the unit)
KVO	1ml/h
Occlusion Alarm	3-level pressure sensitivities setting
Audio & Visual Alarm	Finished, Check Syringe, Drive Disengaged, Pause Overtime, Near Empty ,Empty, Battery Low, Battery run out, Motor Malfunction, System failure ,Occlusion , AC lost etc.
Drug Library	Upgradable
Wireless Monitoring	Upgradable
Display	2.8" LCD
Power Source	≤25W, 100V～240V,50Hz/60Hz
Battery	DC12V,2000mAh(last 6 hours at 25ml/hr after fully recharged)
Operation Condition	Temperature: +5^oC ～ +40^oC,Relative Humidity ≤80%, Atmospheric Pressure 70KPa ～ 106Kpa
Storage and Transportation	Temperature: -20^oC ～ +50^oC,Relative Humidity ≤50%, Atmospheric Pressure 50KPa ～ 106Kpa
Dimensions	305mmX 130mmX 108mm
Weight	2.0kg

Syringe Pump with Trolley.
