7 Pin Circular Plastic Male Plug
NAME
7 Pin Circular Plastic Male Plug
P/N
1PCKCTN07
DESCRIPTION
This is 7 Pin Circular Plastic Male Plug
The push-pull self-locking of high-quality medical connectors,
widely used in various medical equipment, such as: breathing
machine, anesthesia machine, monitors, blood pressure monitors,
ultrasound, infrared treatment, electrophysiological, CT,
high-frequency electric knife , endoscopes, defibrillators, scaler,
electric shock generator, nuclear magnetic resonance.
Mechanical Details |

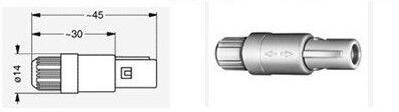

Shell Style / Model | Straight plug with cable collet |

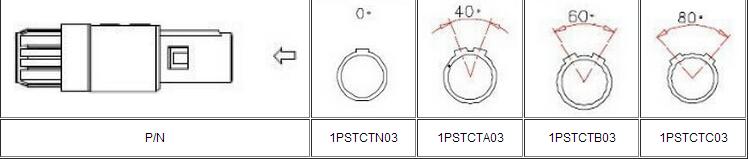

Keying | 1 key (alpha=0) 2 key (alpha+40,60,80) |
Housing Material | PSU (Polysulfong),gray |
Cable Fixing | D42:3.5-4.5mm / D52:4.5-5.5mm / D65:5.5- 6.5mm |
Variant | Blue (red,yellow ,white,black) Collect Nut |
Performance Details |
Insert Configuration | 5 Low Vottage |
Contance pin material | Brass ( gold plated ) |
Insulator | P:PPS |
Specifications | Low Vottage |
Contact Type | Solder |
Max.Matings | 1000 |
Contact Dia | 0.9mm (0.035") |
Bucket Dia | 0.8mm (0.031") |
Max.Soild Conductor | 0.34mm^2(AWG22) |
Max.Stranded Conductor | 0.34mm^2(AWG22) |
R(max) | 4.5 mOhm |
Vtest(AC) | 1050 V |
Vtest(DC) | 1500 V |
Rated Current | 7 A |
Other Characteristics |
Endurance (Shell) | 1000 mating cycles |
Temp(min) | —20 deg |
Temp(max) | 150 deg C |
Humidity(max) | <=98% [at60 degC / 140F] |
IP Rating | 50 |
The Product and specifications are subject to change without any
notice
FEATURES
1 . Smart push-pull self-latching system
2 . Multicore types 2 to 14 pins
3 . Solder or PCB contacts
4 . High packing density for space saving
5 . Collet nut and socket nut with the different color to avoid
mismatching
6 . Plastic shell,waterproof IP50,double reed locked and keyway to
prevent rotation
7 . Technology process: cutting,welding,molding,assembly and
testing
8 . Materials of connector and cable comply with UL and Rohs
standard
9 . OEM/ODM available,customizable and drawings are accepted
WARRANTY
One years after receiving item.

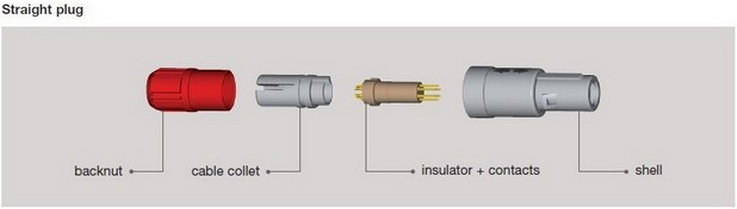

STRUCTURE
